$5.19

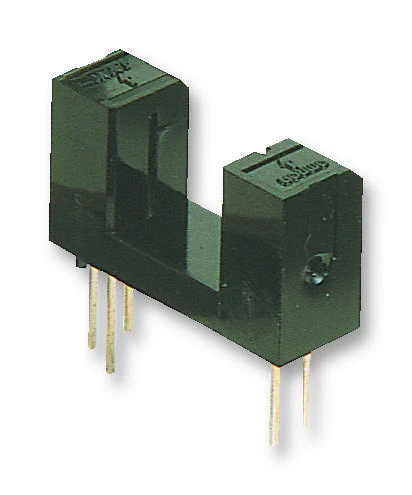

OMRON ELECTRONIC COMPONENTS EE-SX4070 Transmissive Photo Interrupter, Photo / Optical IC, Through Hole, 8 mm, 0.5 mm, 50 mA, 4 V—
$5.19
The Story
The EE-SX4070 is a Transmissive Photomicrosensor is a compact optical sensor that senses objects or object positions with an optical beam. Incorporates an IC chip with a built-in detector element and amplifier. Incorporates a detector element with a built-in temperature compensation circuit. Directly connects with C-MOS and TTL, high resolution with a 0.5mm wide sensing aperture. The transmissive photomicrosensor incorporates an emitter and a transmissive that face each other, when an object is located in the sensing position between the emitter and the detector, the object intercepts the optical beam of the emitter, thus reducing the amount of optical energy reaching the detector.
- Light ON model
Applications
Sensing & Instrumentation
Product details
| Gap Width | 8mm |
| Forward Voltage | 1.2V |
| Sensor Output | Photo / Optical IC |
| Sensor Mounting | Through Hole |
| Forward Current If | 50mA |
| Automotive Qualification Standard | - |
| Product Range | EE-SX3070 Series |
| Aperture Width | 0.5mm |
| Reverse Voltage Vr | 4V |
Other details
| Brand | OMRON ELECTRONIC COMPONENTS |
| Part Number | EE-SX4070 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Description
The EE-SX4070 is a Transmissive Photomicrosensor is a compact optical sensor that senses objects or object positions with an optical beam. Incorporates an IC chip with a built-in detector element and amplifier. Incorporates a detector element with a built-in temperature compensation circuit. Directly connects with C-MOS and TTL, high resolution with a 0.5mm wide sensing aperture. The transmissive photomicrosensor incorporates an emitter and a transmissive that face each other, when an object is located in the sensing position between the emitter and the detector, the object intercepts the optical beam of the emitter, thus reducing the amount of optical energy reaching the detector.
- Light ON model
Applications
Sensing & Instrumentation
Product details
| Gap Width | 8mm |
| Forward Voltage | 1.2V |
| Sensor Output | Photo / Optical IC |
| Sensor Mounting | Through Hole |
| Forward Current If | 50mA |
| Automotive Qualification Standard | - |
| Product Range | EE-SX3070 Series |
| Aperture Width | 0.5mm |
| Reverse Voltage Vr | 4V |
Other details
| Brand | OMRON ELECTRONIC COMPONENTS |
| Part Number | EE-SX4070 |
| Quantity | Each |
| Technical Data Sheet EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
