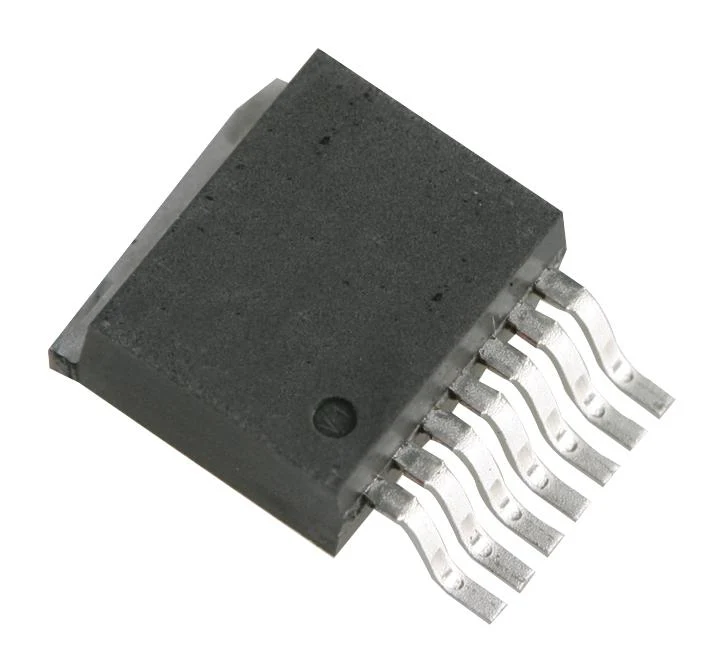

MICROCHIP MIC4685WR DC-DC Switching Buck Step Down Regulator, Adjustable, 4V-30V in, 1.235V/3A out, 200kHz, S-PAK-7
HomeStore

MICROCHIP MIC4685WR DC-DC Switching Buck Step Down Regulator, Adjustable, 4V-30V in, 1.235V/3A out, 200kHz, S-PAK-7

MICROCHIP MIC4685WR DC-DC Switching Buck Step Down Regulator, Adjustable, 4V-30V in, 1.235V/3A out, 200kHz, S-PAK-7

$1.95

Original: $6.50

-70%
MICROCHIP MIC4685WR DC-DC Switching Buck Step Down Regulator, Adjustable, 4V-30V in, 1.235V/3A out, 200kHz, S-PAK-7—

$6.50

$1.95

The Story

Product details

Technical Specifications

Output Type

Adjustable

Topology

Buck (Step Down)

Input Voltage Max

30V

Max Output Current

3A

No. of Pins

7Pins

Output Voltage - Nom

-

Output Voltage Max

1.235V

Efficiency

85%

Operating Temperature Max

125°C

Qualification

-

SVHC

No SVHC (25-Jun-2025)

Switching Frequency

200kHz

No. of Outputs

1Outputs

Input Voltage Min

4V

Output Current

3A

IC Case / Package

S-PAK

IC Mounting

Surface Mount

Output Voltage Min

-

Switching Frequency Typ

200kHz

Operating Temperature Min

-40°C

Product Range

-

MSL

MSL 3 - 168 hours

DC / DC Converter IC Case

S-PAK

Other details

Brand MICROCHIP
Part Number MIC4685WR
Quantity Each
Technical Data Sheet EN Download technical document - datasheet - Tanotis India

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
