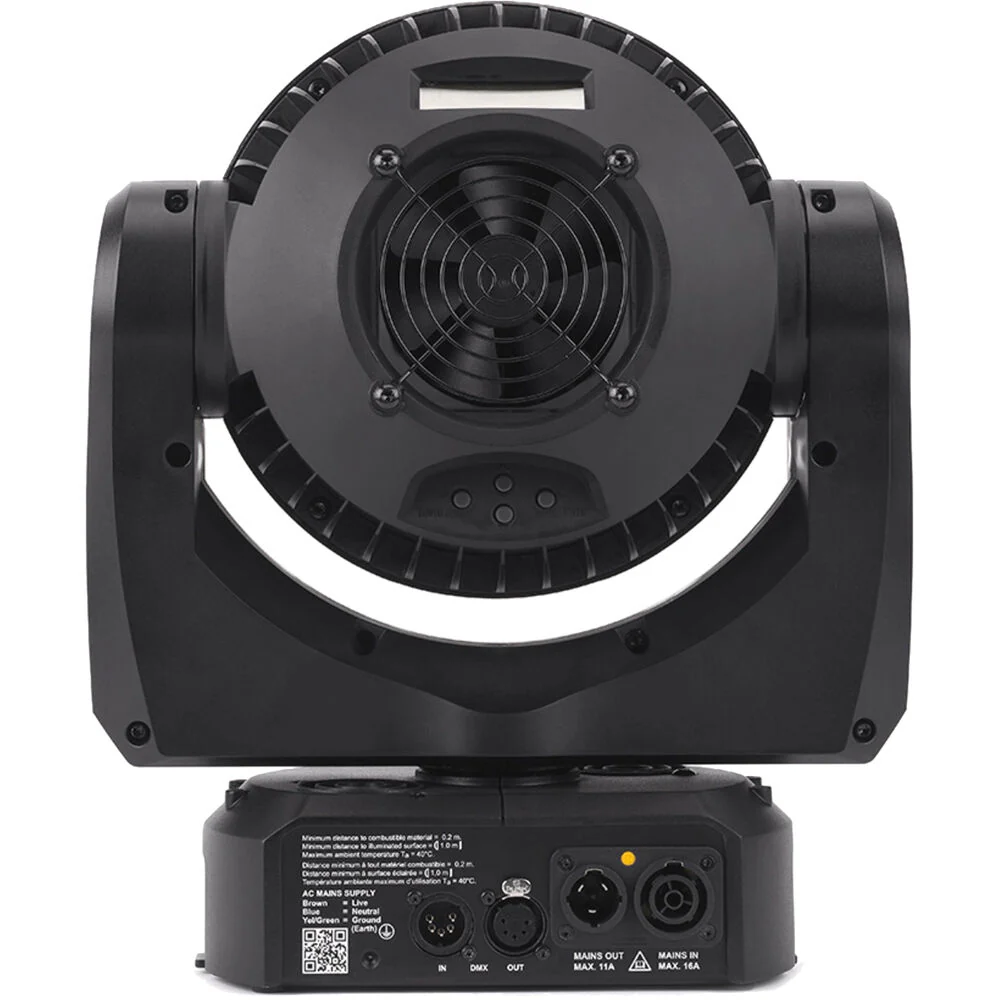

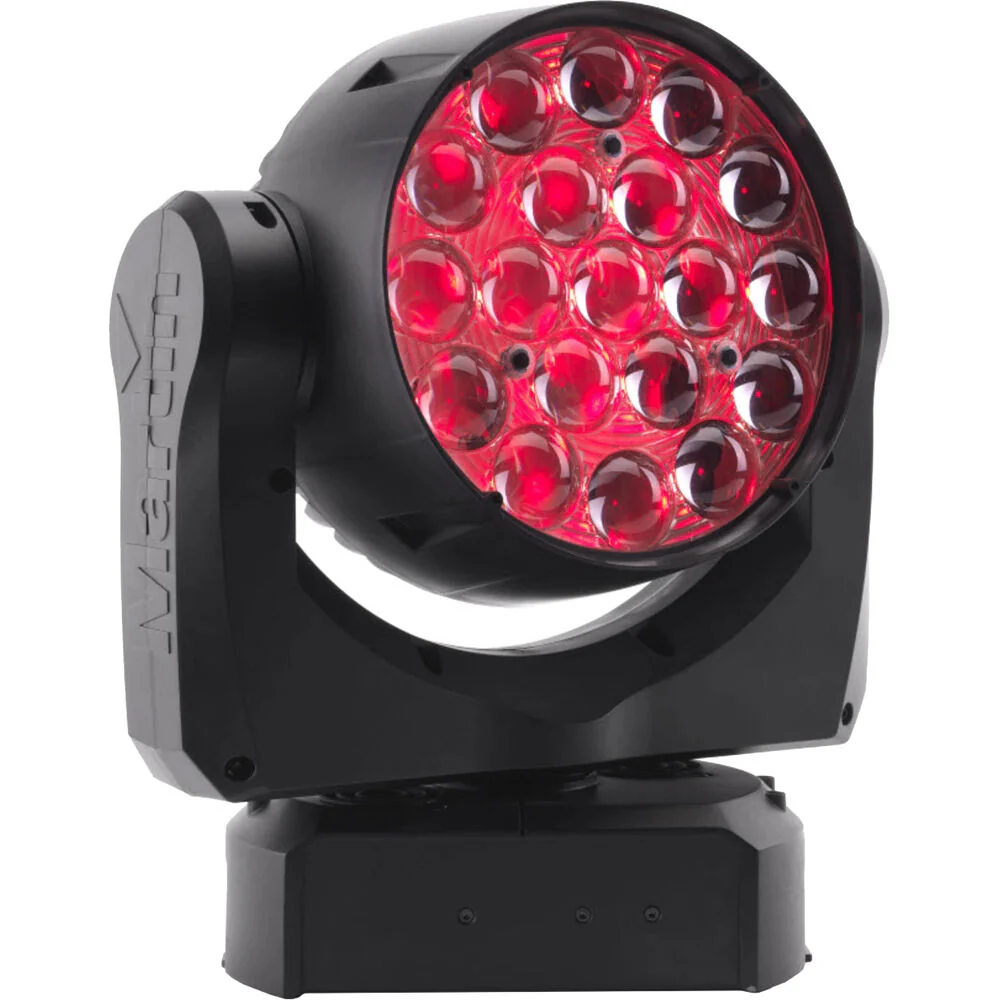

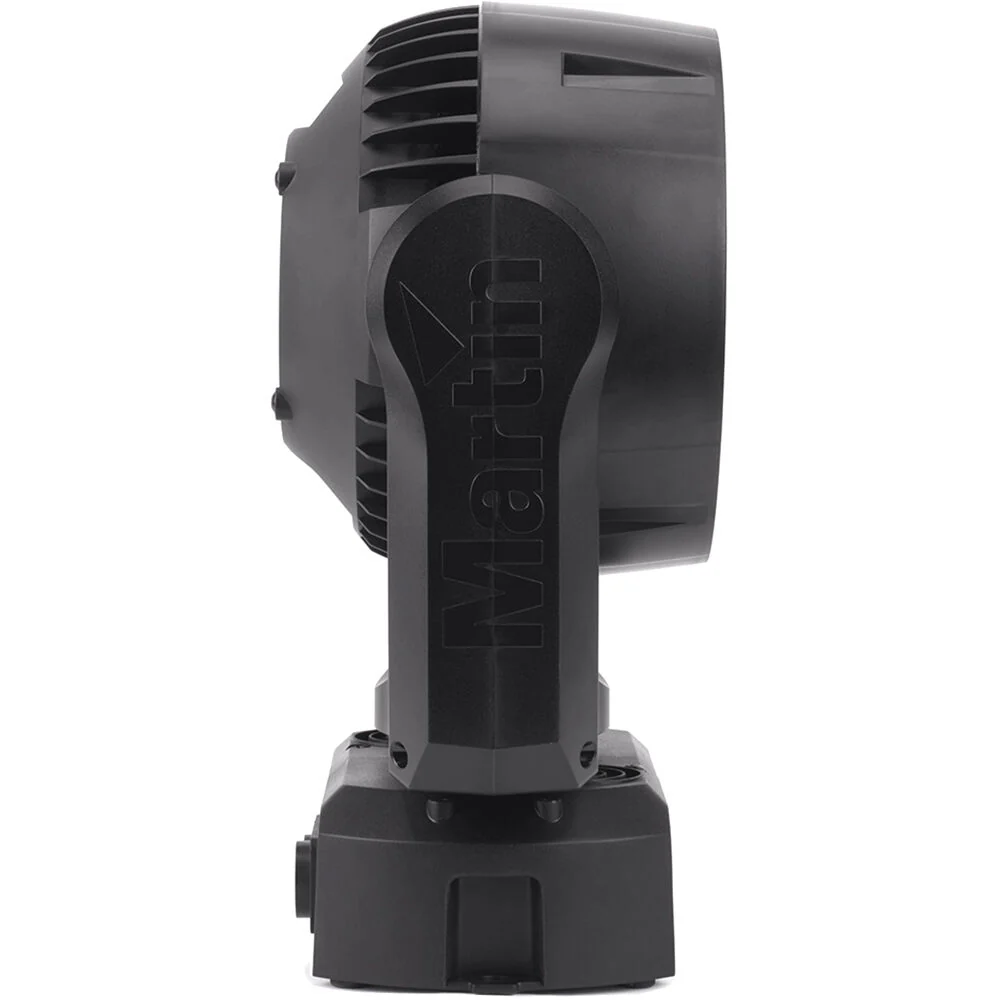

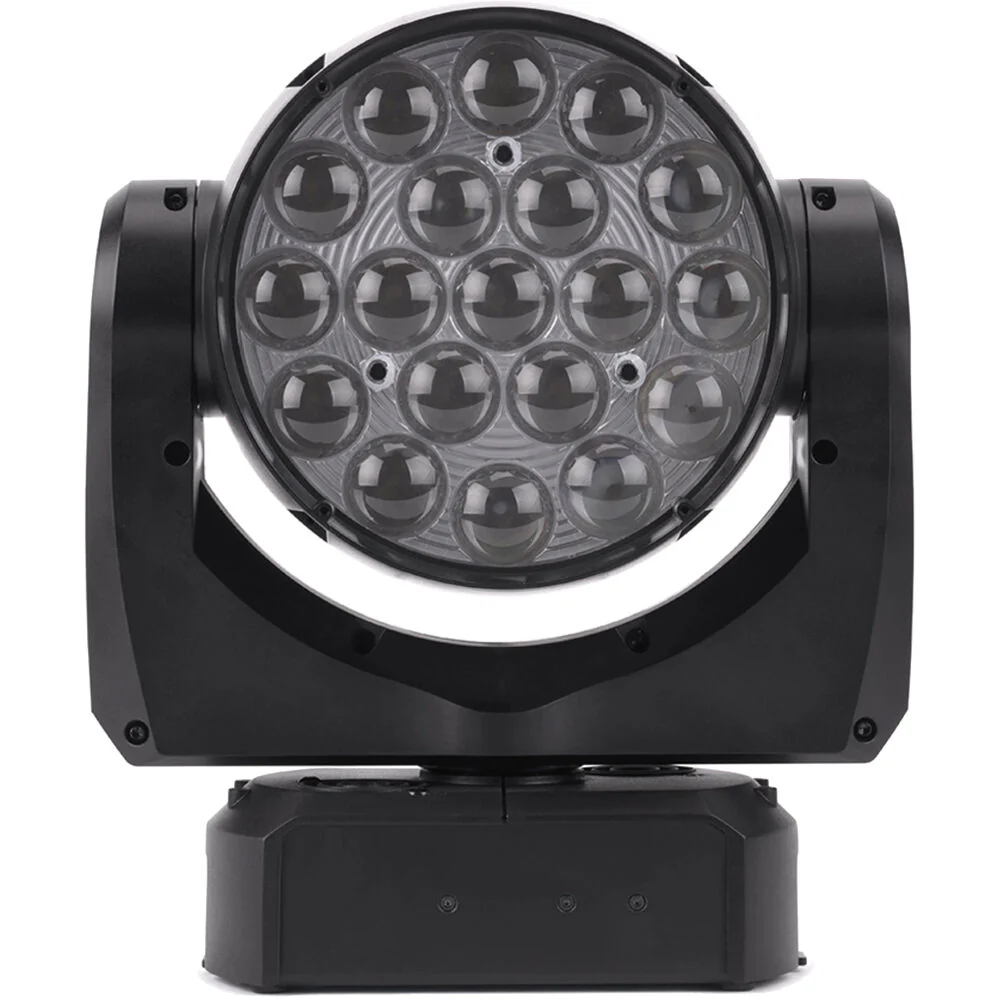

-70%Martin Professional Lighting Mac Aura LED Wash XB In Cardboard Box—
$7,855.84
$2,356.75The Story
Martin Professional Lighting MAC Aura XB Overview
Additional Resources
Martin Professional Lighting MAC Aura XB Specs
Key Specs
| Fixture Type |
Moving Head
|
| Light Source |
19x Color LED - 15 W
30x Color LED - 0.3 W |
| Colors |
Blue, Green, Red, White
|
| Pixel Configuration |
2x Zone
|
| Beam Angle |
9 to 42°
|
| Control Protocols |
DMX512, RDM
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| Power / Current Consumption |
400 W (Max)
|
| Mounting |
Floor Base, M12 Threaded, Mounting Bracket
|
Light
| Fixture Type |
Moving Head
|
| Light Source |
19x Color LED - 15 W
30x Color LED - 0.3 W |
| Colors |
Blue, Green, Red, White
|
| Pixel Configuration |
2x Zone
|
| Photometrics |
9°:
19,182 fc / 206,486 Lux at 3.3' / 1 m 767 fc / 8259 Lux at 16.4' / 5 m 191 fc / 2065 Lux at 32.8' / 10 m 42°: 1170 fc / 12,603 Lux at 3.3' / 1 m 46 fc / 504 Lux at 16.4' / 5 m 11 fc / 126 Lux at 32.8' / 10 m |
| Color Temperature |
2500 to 10,000K
|
| Lumen Output |
6000 Lumens
|
| Beam Angle |
9 to 42°
|
| Field Angle |
10 to 59°
|
| Shutter / Strobe |
Electronic
|
| Iris |
No
|
| Zoom Adjustment |
Motorized, 9 to 59°
|
| Dimming |
0 to 100% with 4 Dimmer Modes
|
Performance
| Operating Modes |
DMX
|
| Gobos |
No
|
| Color Accuracy Index |
CRI: ? 67
TLCI: ? 48 |
| Refresh Rate |
1200 Hz to 4395 Hz
|
Movement
| Tilt Ranges |
230°
|
| Pan Ranges |
540°
|
| Movement Resolution |
16-Bit
|
Control
| Control Protocols |
DMX512, RDM
|
| DMX Channel Modes |
2 Mode(s):
14 / 25-Channel |
| Display / Controls |
LCD
|
| Remote Control |
No
|
| Mobile App Compatible |
No
|
Connectivity
| Inputs/Outputs |
1 x XLR 5-Pin DMX Input
1 x XLR 5-Pin DMX Output |
| Wireless |
No
|
Power
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| AC Power Connector |
Input: 1x powerCON TRUE1
Output: 1x powerCON TRUE1 |
| Power / Current Consumption |
400 W (Max)
|
Physical
| Environmental Resistance |
Dust-Resistant (IP20)
|
| Operating Conditions |
Up to 104°F / 40°C
|
| Mounting |
Floor Base, M12 Threaded, Mounting Bracket
|
| Included Accessories |
No
|
| Duty Cycle |
No
|
| Exterior Color |
Black
|
| Max Housing Temperature |
158°F / 70°C
|
| Cooling |
Fan
|
| Certifications |
C-Tick N4241, CSA E598-2-17, EN 60598-2-17, EN 62471, EN 61547, EN 55015, EN 55103-2, EN 55103-1, FCC Part 15 Class A, ICES-003 Class A, UKCA, UL 1573
|
| Dimensions |
13.1 x 11.9 x 6.4" / 332 x 302 x 163 mm
|
| Weight |
14.4 lb / 6.5 kg
|
