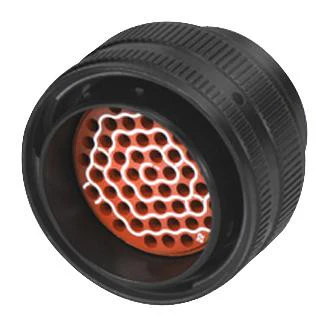

-70%CINCH CONNECTIVITY SOLUTIONS C48-16R18-8S8-406 Circular Connector, C48 Series, Straight Plug, 8 Contacts, Crimp Socket - Contacts Not Supplied—
$394.18
$118.25The Story
The C48-16R18-8S8-406 from Cinch is C48 series, MIL-DTL-26500 series equivalent straight plug with 8 contacts. The C48 series connectors are qualified to Boeing specifications to satisfy general purpose requirements and unique product challenges for shielding, environmental sealing, fluid resistance and vibration. These connectors have composite shells which are best for weight sensitive applications. The C48 series connectors have well-proven electrical capability to withstand extreme shock, exposure and vibration.
- High reliability connectors
- Connector styles qualified to Boeing BACC45 series
- Front release crimp contacts
- Operating temperature range from -55°C to +200°C
- Glass filled epoxy insulator, silicone based elastomer grommet & seals
- Insulation resistance is 5000Mohm
- Salt spray exposure of 96hour
- Bayonet coupling with 500 mating cycles
- Aluminium alloy body material with non-conductive black anodized finish
- Copper alloy crimp socket contacts with gold plating
Applications
Industrial, Commercial
Product details
| Contact Material | Copper Alloy |
| Circular Connector Shell Style | Straight Plug |
| Contact Plating | Gold |
| Insert Arrangement | 18-8 |
| Connector Body Material | Aluminium Alloy Body |
| Service Class | Environmentally Sealed |
| Coupling Style | Bayonet |
| No. of Contacts | 8Contacts |
| Product Range | C48 Series |
| Equivalent Military Specification | MIL-DTL-26500 Series |
| Connector Body Plating | Non-conductive Black Anodise |
| Insert Rotation | 8 |
| Circular Contact Type | Crimp Socket - Contacts Not Supplied |
Other details
| Brand | CINCH CONNECTIVITY SOLUTIONS |
| Part Number | C48-16R18-8S8-406 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
