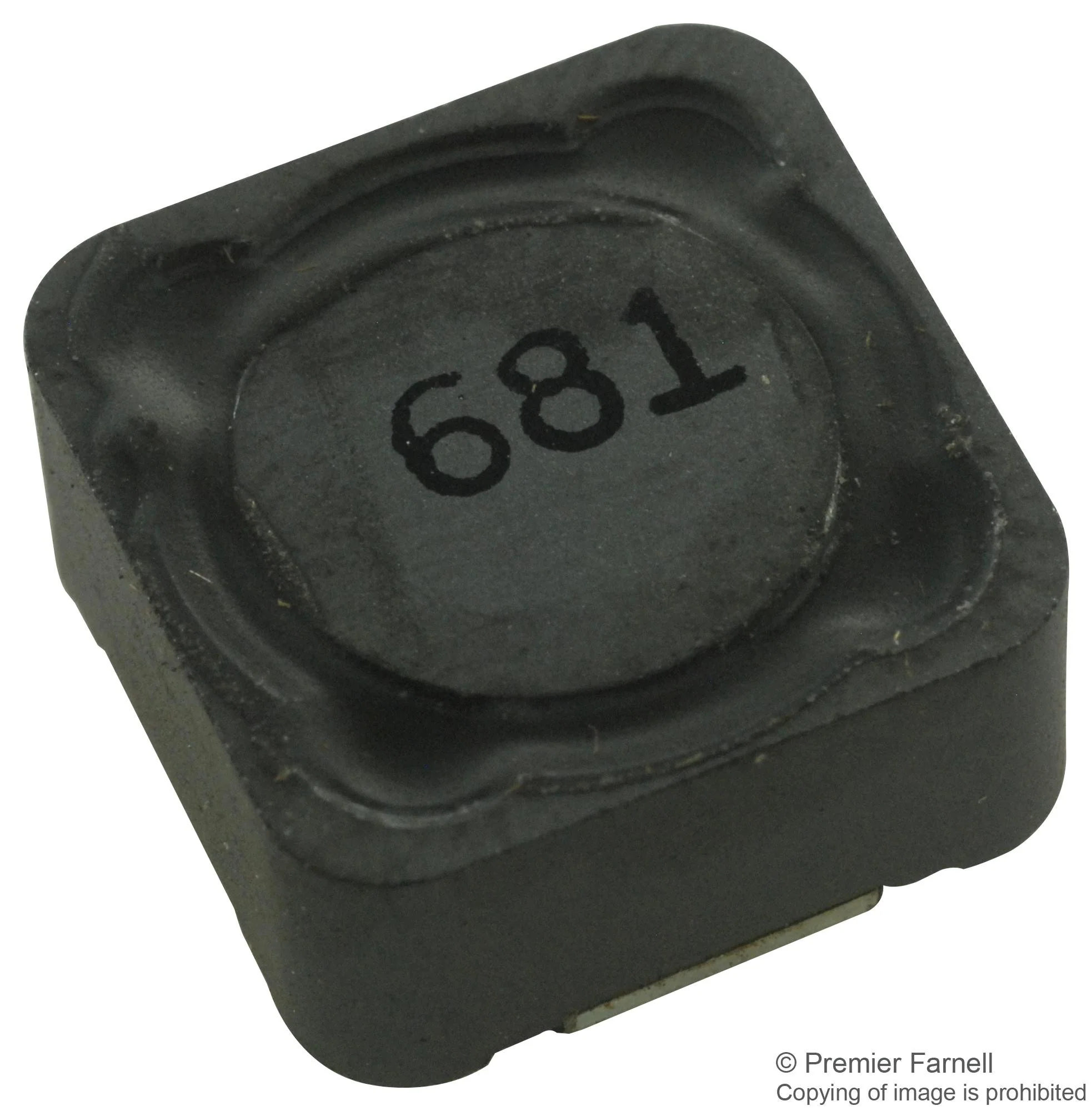

BOURNS SRR1260-681K Surface Mount Power Inductor, SRR1260 Series, 680 µH, 800 mA, 750 mA, Shielded, 1.15 ohm—
$1.48
The Story
This is a Surface Mount Power Inductor, SRR1260 Series, 680 µH, 800 mA, 750 mA, Shielded, 1.15 ohm product from BOURNS with the model number SRR1260-681K
Product details
| Product Range | SRR1260 Series |
| Inductance | 680µH |
| RMS Current (Irms) | 800mA |
| Saturation Current (Isat) | 750mA |
| Inductor Construction | Shielded |
| DC Resistance Max | 1.15ohm |
| Power Inductor Case | 12.5mm x 12.5mm x 6mm |
| Inductance Tolerance | ± 10% |
| Packaging | Cut Tape |
Other details
| Brand | BOURNS |
| Part Number | SRR1260-681K |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| 3D Product Image EN | |
