-70%AMP - TE Connectivity 5-104363-2 5-104363-2 Pin Header Wire-to-Board 2.54 mm 1 Rows 3 Contacts Through Hole Straight MTE—
$1.91
$0.57The Story

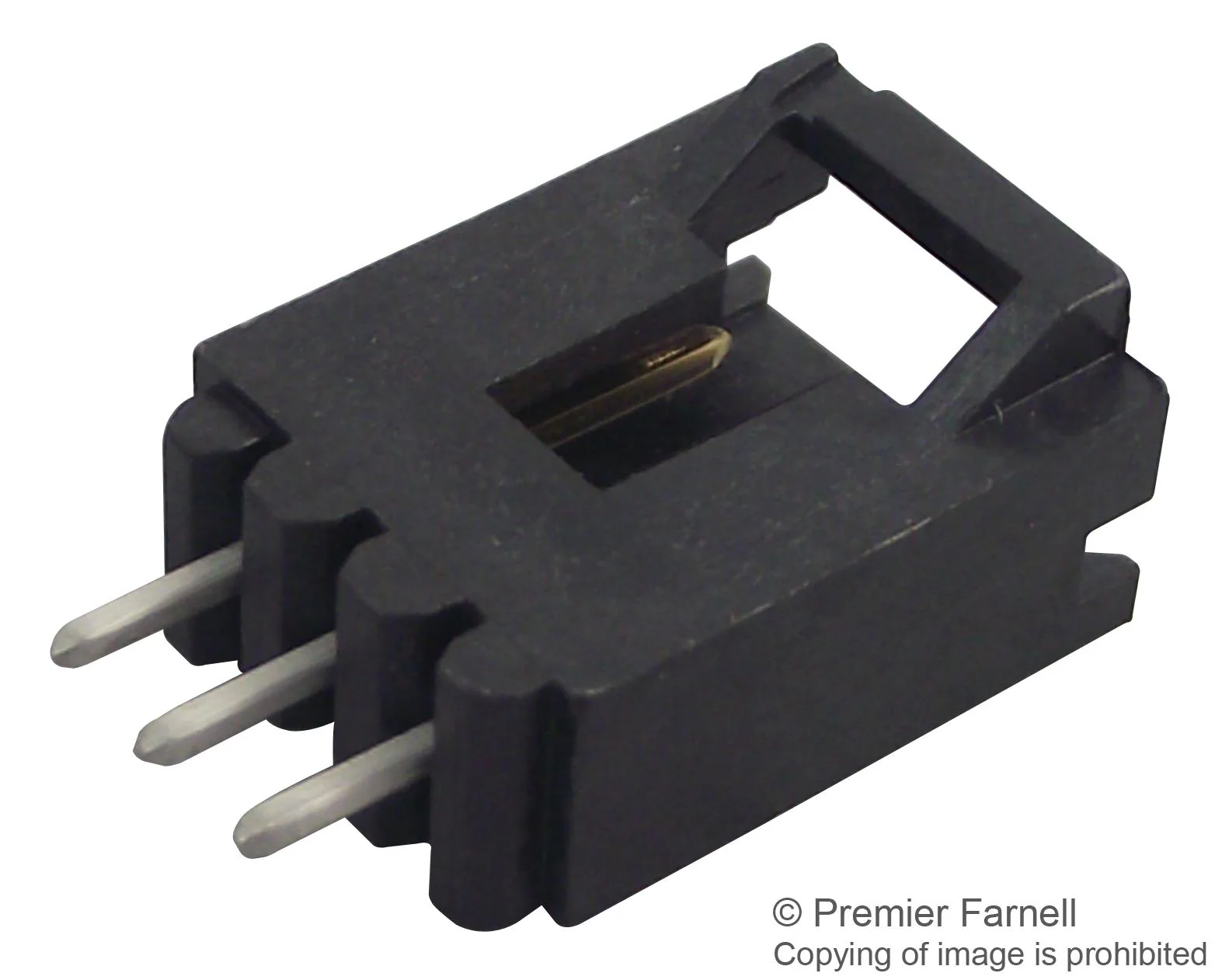

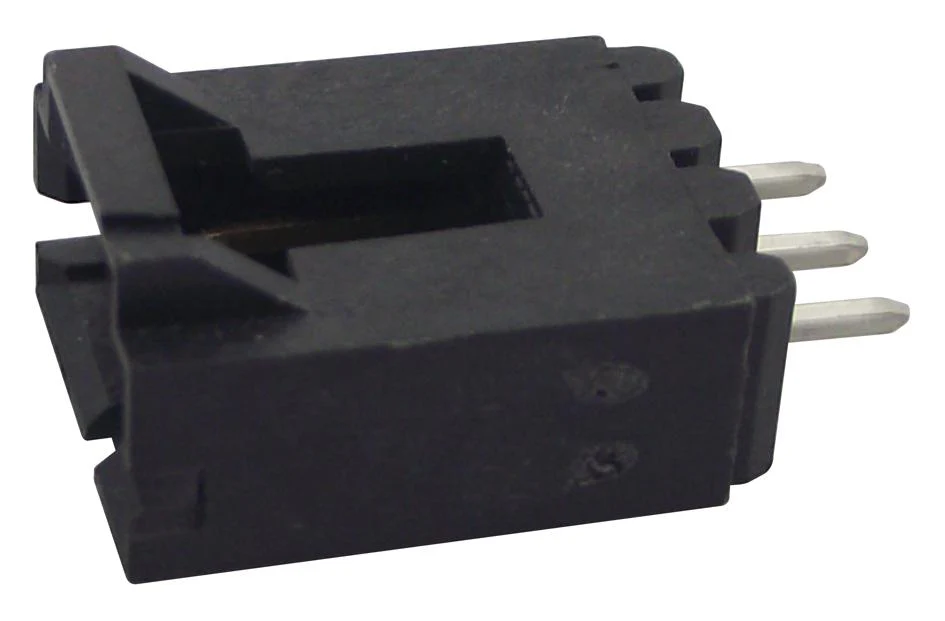

The 5-104363-2 is a 3-position 1-row Shrouded Header with pin type gold-plated brass contacts and black thermoplastic housing. The AMPMODU MTE series connector has polarized lock mating retention, locking lance contact retention and latched mating alignment. It is suitable for use with receptacle housing assembly and printed circuit board.
- 600V Dielectric withstanding voltage
- 5000MR Insulation resistance
- 15mR Termination resistance
- 3A Contact current rating
- UL94V-0 Flammability rating
Industrial
Other details
| Brand | AMP - TE CONNECTIVITY |
| Part Number | 5-104363-2 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Manufacturer Catalogue EN | |
| Application Note EN | |
| Product Change Notice EN | |
| 3D Product Image EN | |
| Drawing EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
The 5-104363-2 is a 3-position 1-row Shrouded Header with pin type gold-plated brass contacts and black thermoplastic housing. The AMPMODU MTE series connector has polarized lock mating retention, locking lance contact retention and latched mating alignment. It is suitable for use with receptacle housing assembly and printed circuit board.
- 600V Dielectric withstanding voltage
- 5000MR Insulation resistance
- 15mR Termination resistance
- 3A Contact current rating
- UL94V-0 Flammability rating
Industrial
Other details
| Brand | AMP - TE CONNECTIVITY |
| Part Number | 5-104363-2 |
| Quantity | Each |
| Technical Data Sheet EN | |
| Manufacturer Catalogue EN | |
| Application Note EN | |
| Product Change Notice EN | |
| 3D Product Image EN | |
| Drawing EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
